80 Points 60 Degree SMD3030 8500lm LED Linear Light Lens

Name: 80 Points 60 Degree SMD3030 8500lm LED Linear Light Lens
Brand: SunshineOpto
Price: 1 USD

Quality 80 Points 60 Degree SMD3030 8500lm LED Linear Light Lens wholesale

Brand Name : SunshineOpto

Model Number : SUN-L80W-60

Certification : SGS/ROHS

Place of Origin : Shenzhen,China

MOQ : 20

Price : need to negotiation

Payment Terms : T/T, Western Union, MoneyGram,PayPal

Supply Ability : 5000 sets per Month

Delivery Time : 5-8 working days

Packaging Details : 20 sets/Carton .

Product Kits : Led lens with silicon gasket ,pcb welding 3030 leds

Lens Size : 236*70mm

Lens Angle : 60 degree

PCB Size : 220*54*1.5 mm

PCB Circuit : 8 series 10 parallel

Match Leds : 3030 led

Support power : 50watt-60watt

Luminous Flux : 7500lm-8500lm

Contact Now

80 Points 60 Degree Linear High Bay Light Lens With Led Board

1, The module uses high-quality 3030 leds and we provide 2 years warranty ,Provide after-sale service for you .

2, the lens angle also have 30/90degree for linear high bay lights,

3, we can also provide match heat sink and led driver

Quick Details :

Product details
Model No	SUN-L80W-60
Lens size	23670mm*
Lens Beam Angle6	60 degree
PCB Size	220541.5 mm
PCB Circuit	8 series 10 parallel. DC 48V Voltage
Main parts	led lens with silicon gasket + pcb mounting 3030 leds

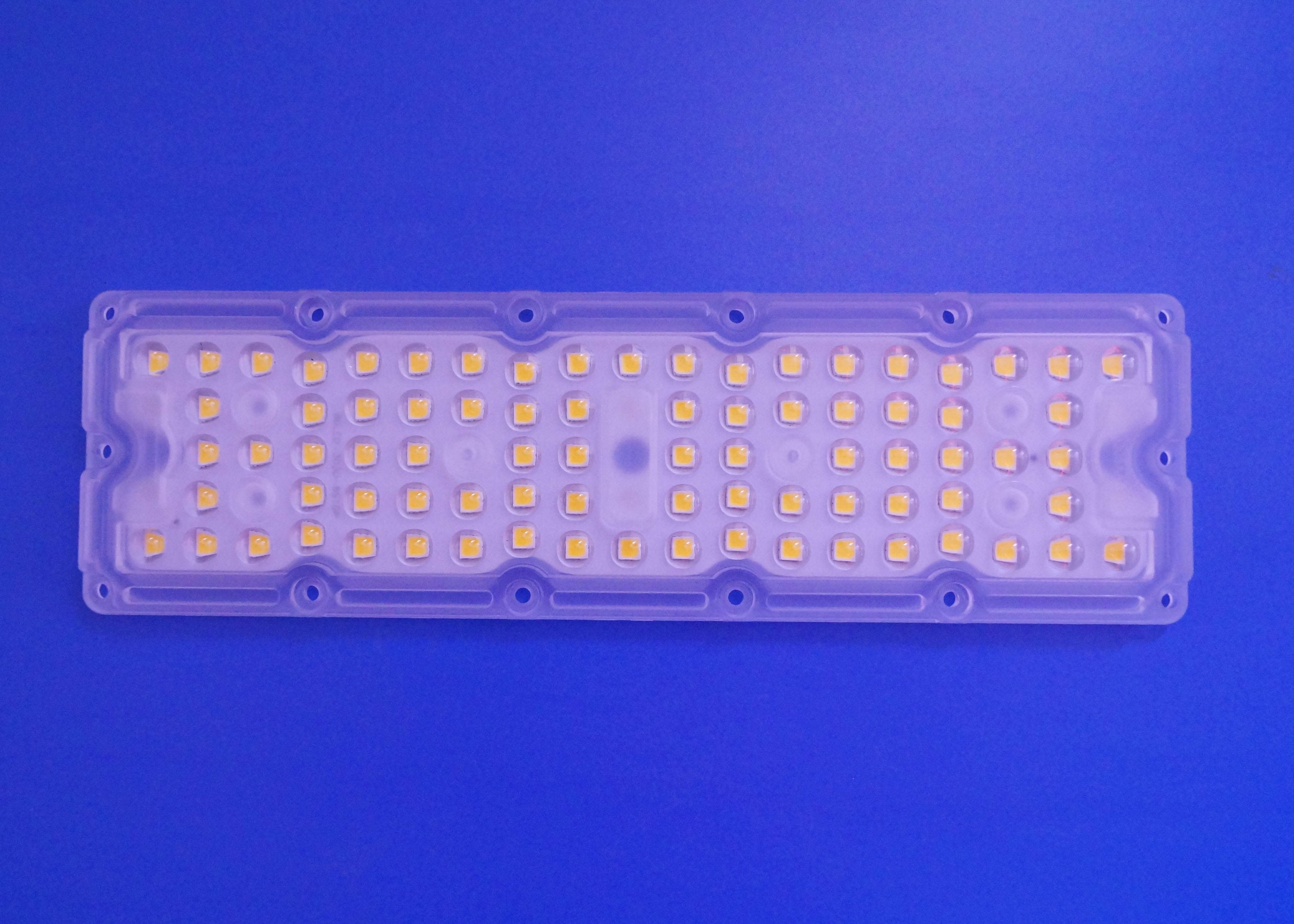

Product Picture :

80 Points 60 Degree SMD3030 8500lm LED Linear Light Lens

We provide led street light parts, you need to assemble it yourself, if you need us to provide assembly, we need to charge the assembly fee .

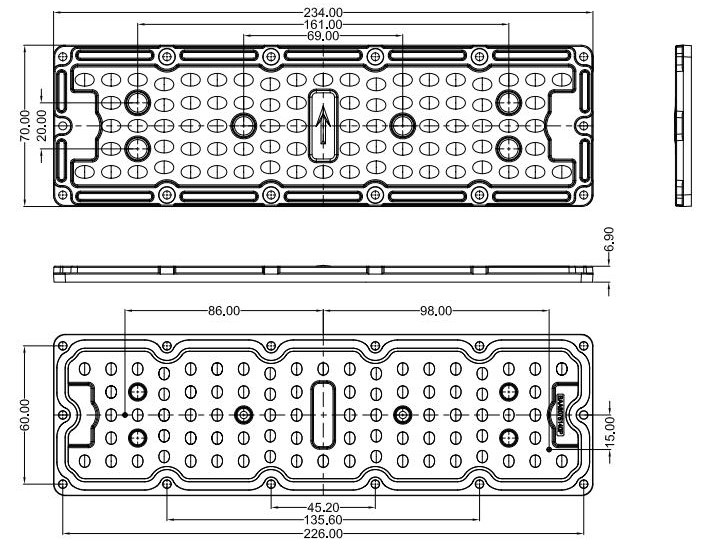

Lens Size :

80 Points 60 Degree SMD3030 8500lm LED Linear Light Lens

Package :

20sets/carton ,14kg ,55*33*21cm .

Application :

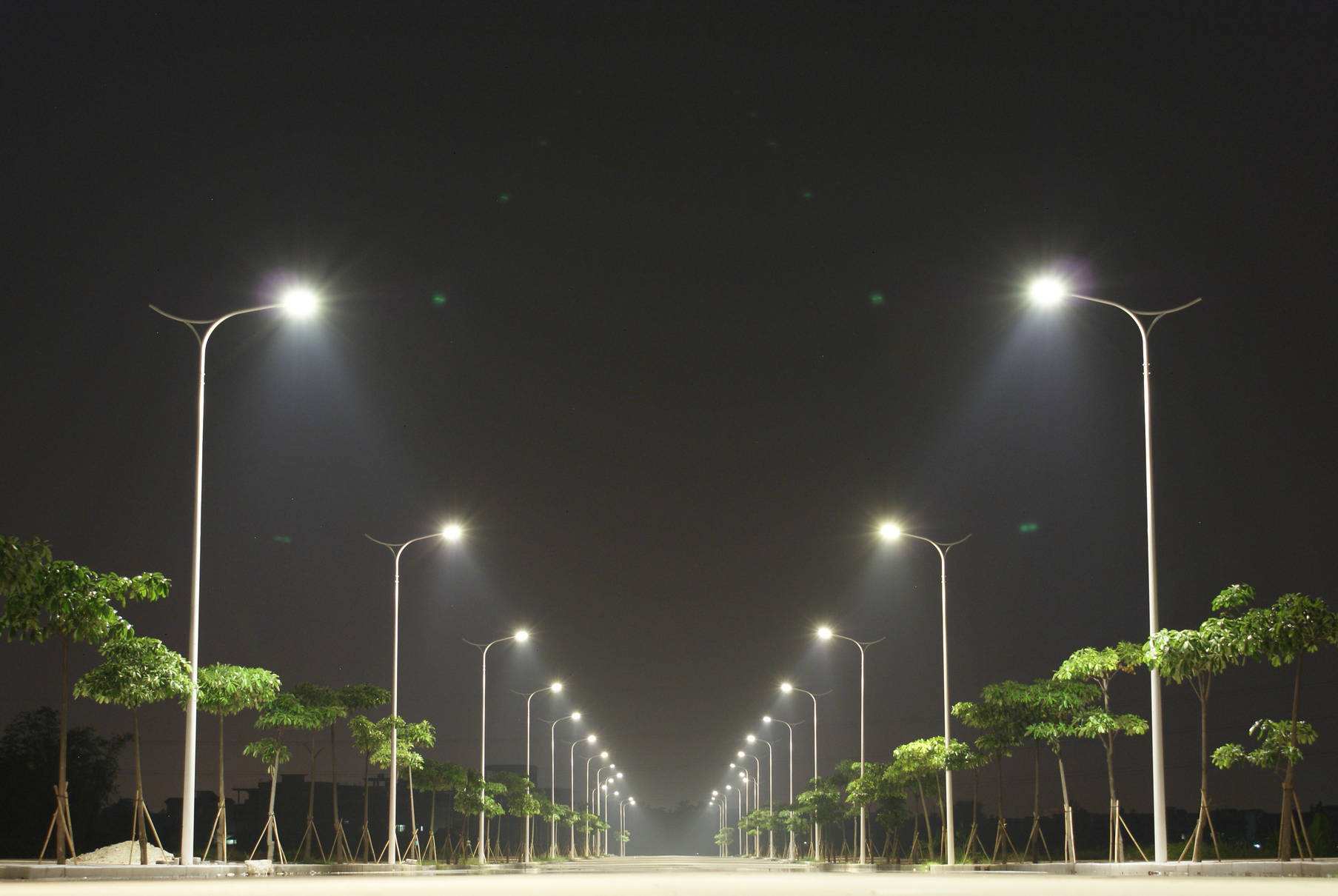

High efficiency street light ,etc .

80 Points 60 Degree SMD3030 8500lm LED Linear Light Lens

FAQ

Q1. Can I have a sample order for led light?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. How to proceed an order for led light?

A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
