150 Degree Linear 253x120mm SMD3030 High Bay Light Lens 100w

Name: 150 Degree Linear 253x120mm SMD3030 High Bay Light Lens 100w
Brand: SunshineOpto
Price: 1 USD

Quality 150 Degree Linear 253x120mm SMD3030 High Bay Light Lens 100w wholesale

Brand Name : SunshineOpto

Model Number : SUN-SL253x120-150

Certification : SGS/ROHS

Place of Origin : Shenzhen,China

MOQ : 20

Price : need to negotiation

Payment Terms : T/T, Western Union, MoneyGram,PayPal

Supply Ability : 5000 sets per Month

Delivery Time : 5-8 working days

Packaging Details : 20 sets/Carton .

Product Kits : led lens with gasket, 144points 3030 led board

Lens Size : 253x120mm

Lens Angle : 150 degree

Match Leds : 144 points 3030 leds

PCB Size : 223x93x1.5mm

PCB Circuit : 8 series 18 parallel

Contact Now

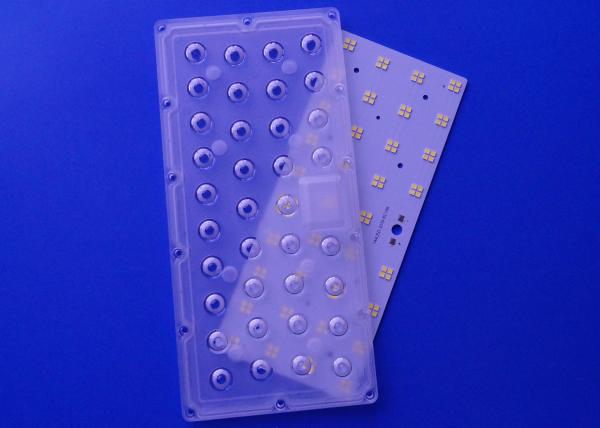

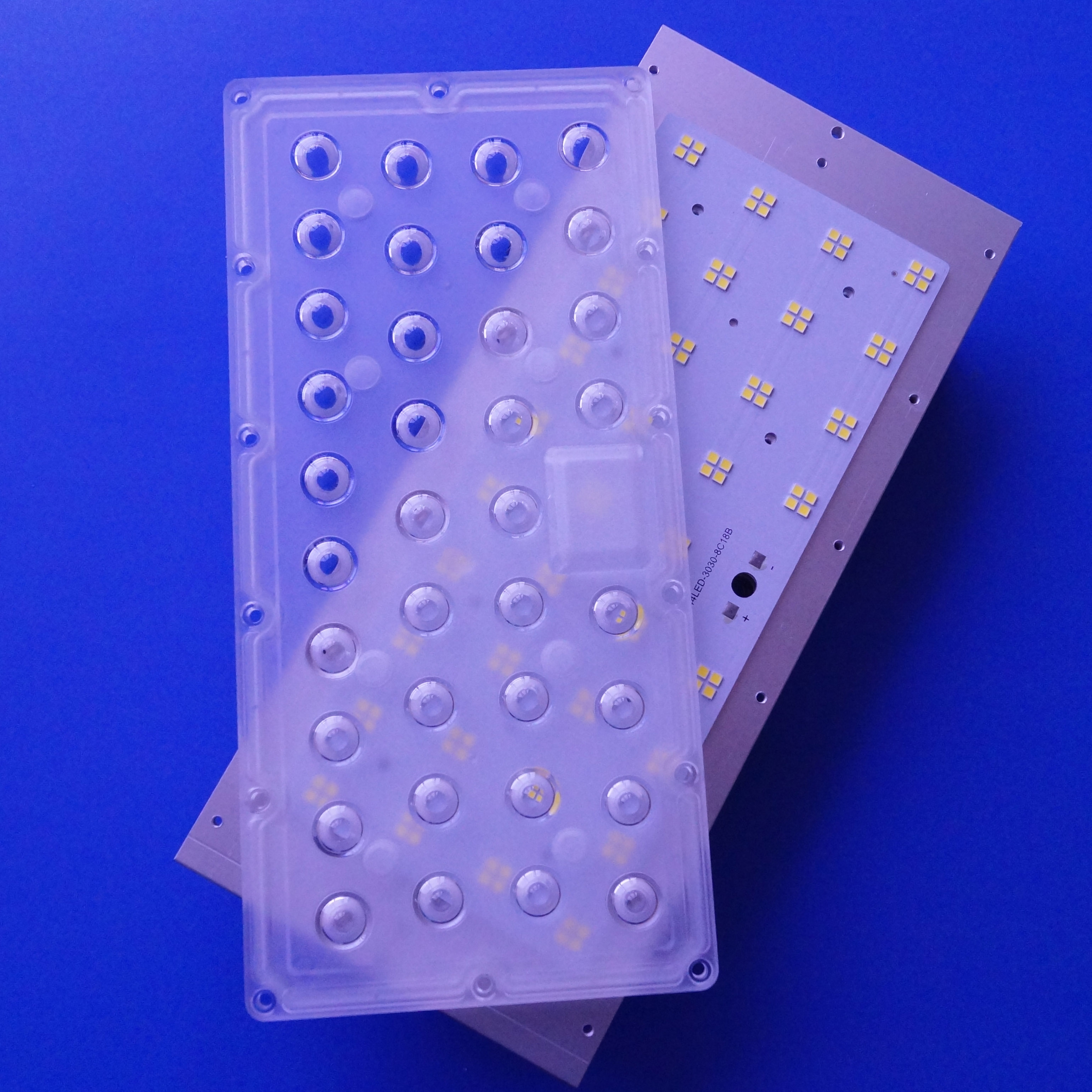

150 Degree Wide Angle Linear High Bay Light Lens With 100w High Power Led Board

150 Degree Linear 253x120mm SMD3030 High Bay Light Lens 100w

Model No.:	SUN-SL253x120-150
Lens angle:	150 degree
Lens size:	253x120mm
PCB size:	223x93x1.5mm
PCB Circuit:	8 series 18 parallel
Transmittance:	90-93%
Match Led:	144pcs 3030 SMD LED

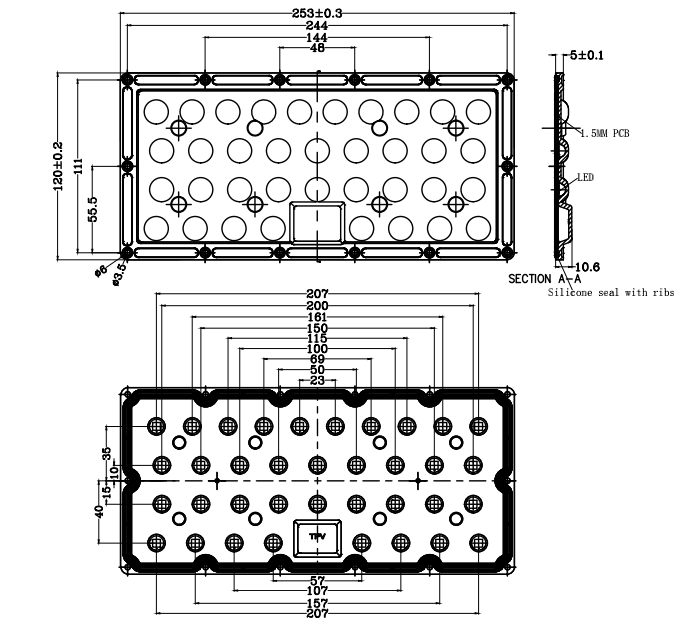

LENS drawing:

Lens Size :253X120mm

Lens Angle : 150 degree

Lens material :optical grade PC

150 Degree Linear 253x120mm SMD3030 High Bay Light Lens 100w

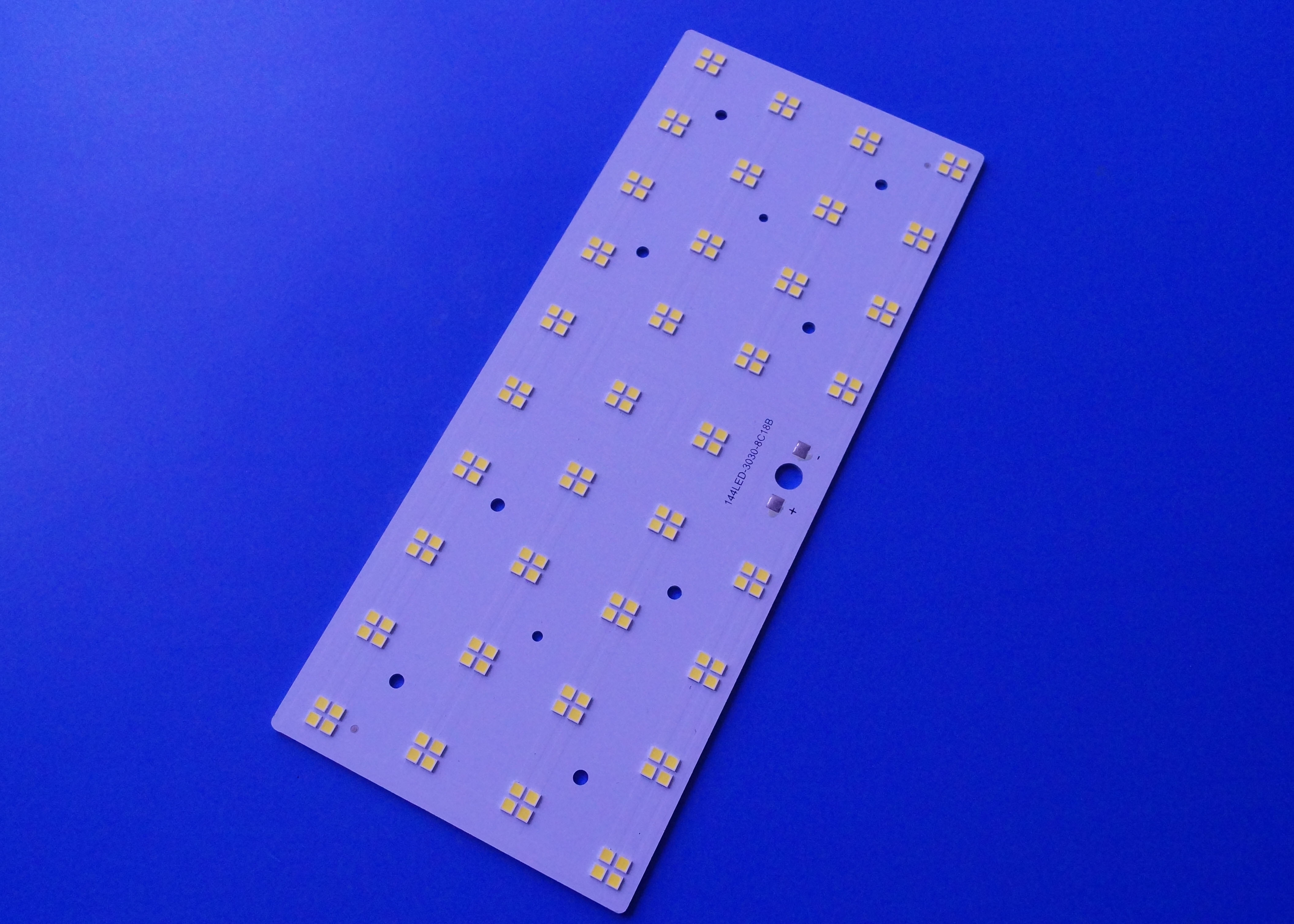

PCB :

PCB Size :223X93 mm

PCB Circuit :8 series 18 parallel for smd 3030 leds

150 Degree Linear 253x120mm SMD3030 High Bay Light Lens 100w

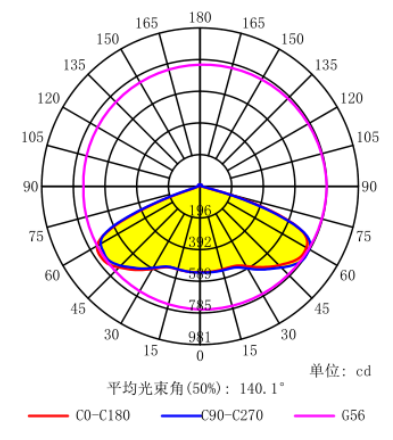

Light distribution:

150 degree

150 Degree Linear 253x120mm SMD3030 High Bay Light Lens 100w

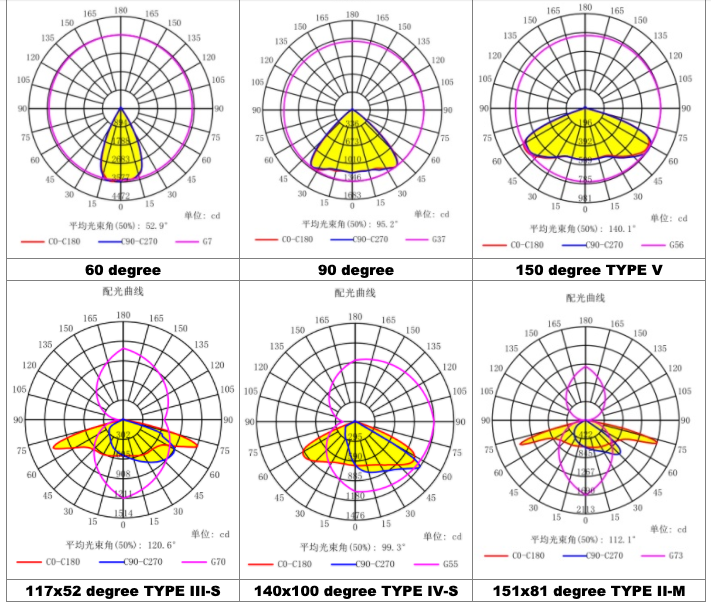

For this 100W Led light module, we also have other angle for choose, like 60/90 degree, TYPE II, TYPE III, TYPE IV, TYPE V degree for choose,

150 Degree Linear 253x120mm SMD3030 High Bay Light Lens 100w
