Mini Size Led Optics Lenses 120 Degree Angle 50W 3030 Led Module For High Bay Light

  • 1
  • 2

Brand Name : SunshineOpto

Model Number : SUN-J64H1-3030-120

Certification : SGS/ROHS

Place of Origin : Shenzhen,China

MOQ : 20

Price : need to negotiation

Payment Terms : T/T, Western Union, MoneyGram,PayPal

Supply Ability : 5000 sets per Month

Delivery Time : 5-8 working days

Packaging Details : 20 sets/Carton .

Product Kits : Led lens with silicon gasket ,pcb welding 3030 leds

Lens Size : Dia 110mm

Lens Angle : 120 degree

PCB Size : Dia 93mm ,T 1.5mm

PCB Circuit : 8 series 8 parallel

Match Leds : 3030 led @6V ,150ma

Lens : for High bay light

Contact Now

New Mini Size Dia 110mm 50W 3030 Led Module for High Bay Light

Product feature :

1, The module use high-quality 1W 3030 leds and we provide 2 years warranty .

2, Mini size looks cute but it can support 50W power .

3, Lens angle 120 degree ,

Quick Details :

Model No: SUN-J64H1-3030-120
Lens Size: DIA 110mm
Lens angle: 120 degree
PCB Size: Dia 93mm , Thickness 1.5mm
PCB Circuit: 8 series 8 parallel
Transmittance: 90-93%
Match Led: 64 pcs 3030/2835 leds

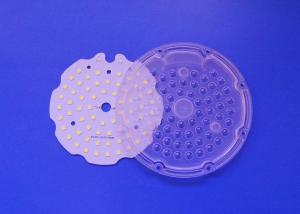

Product Picture :

Mini Size Led Optics Lenses 120 Degree Angle 50W 3030 Led Module For High Bay Light

We provide led high bay light parts, include led lens , pcb welding leds ,

you need to assemble it yourself,

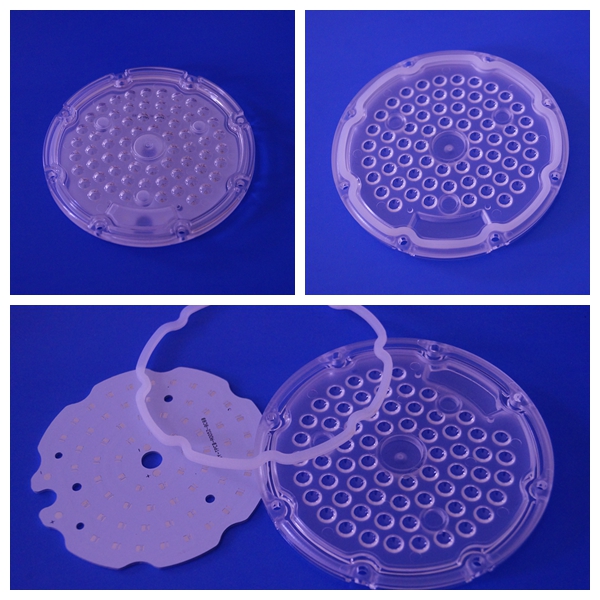

Lens size :

Mini Size Led Optics Lenses 120 Degree Angle 50W 3030 Led Module For High Bay Light

1, Product combined with Geometric Surface Design,High light efficiency;

2, On the basic character of SMD 3030 series light, show the application of the Combination of optical and construction.

3, Waterproof design ,lens with silicon gasket .

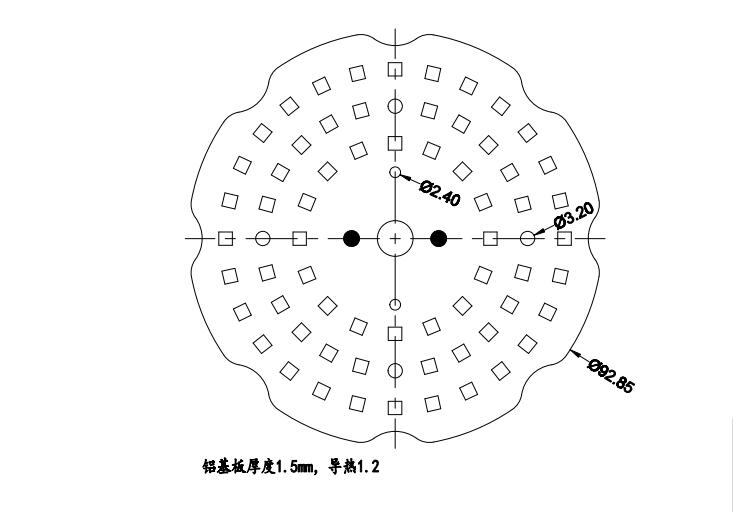

PCB size :

Mini Size Led Optics Lenses 120 Degree Angle 50W 3030 Led Module For High Bay Light

1, PCB circuit : 8 series 8 parallel ,for 3030 leds .

2, Dia 93mm ,thickness 1.5mm ,

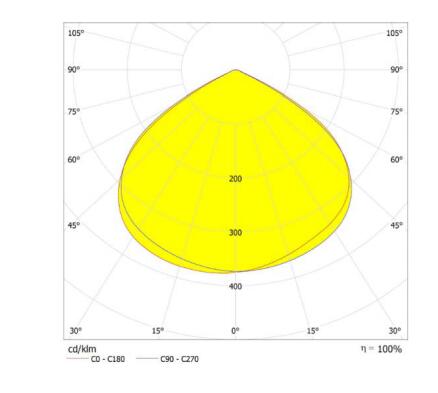

Light distribution : ( 120 degree)Optics Report

Mini Size Led Optics Lenses 120 Degree Angle 50W 3030 Led Module For High Bay Light

The lens has high light transmittance and is not easy to yellow.

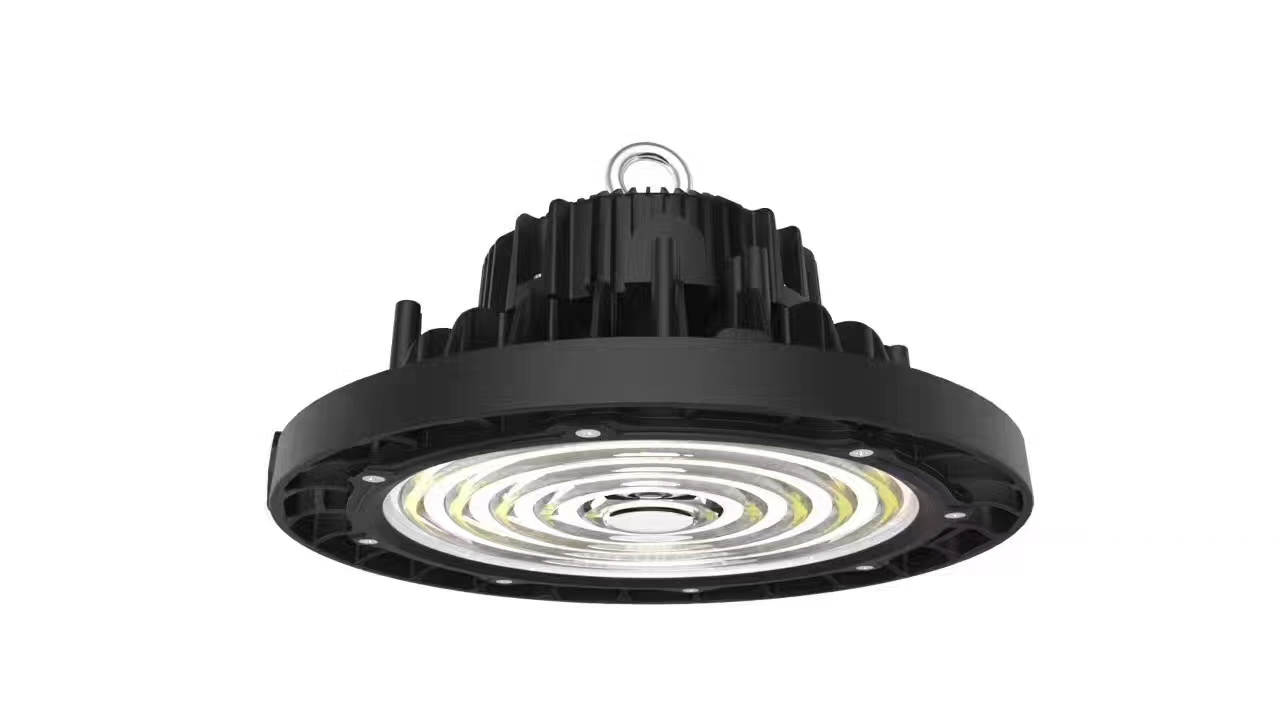

Application :

High Bay Light ,Flood light ,etc

Mini Size Led Optics Lenses 120 Degree Angle 50W 3030 Led Module For High Bay Light
